RIPEnergy AG|7 March 2017

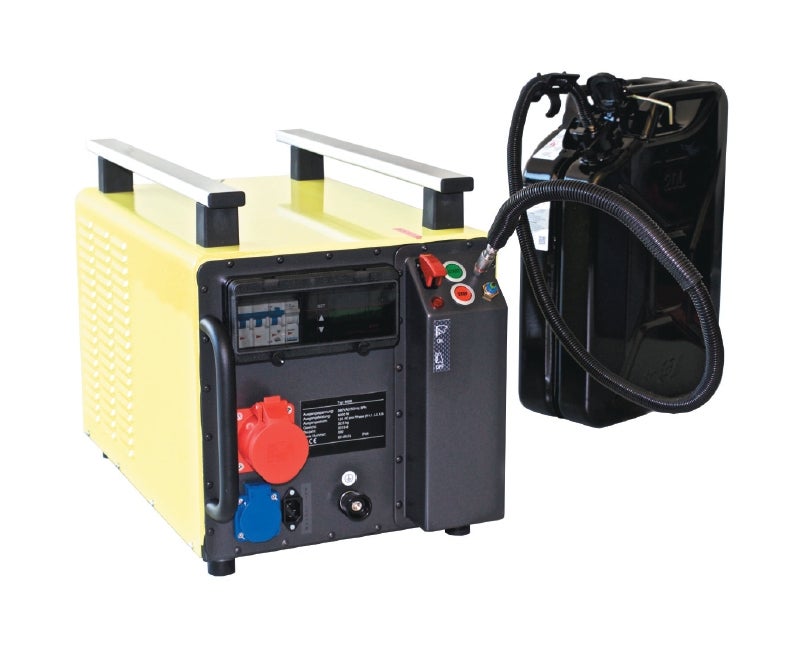

Gas Turbine Generator – 400VAC/50Hz

The 400VAC gas turbine generator is a small, lightweight and powerful system for mobile power supply.

gas turbine generator

The 400VAC gas turbine generator is a small, lightweight and powerful system for mobile power supply. Key features include:

  • Ultracompact world’s highest specific output
  • Automatic ECU START/STOP system
  • Core available (turbine and generator only)

Version 400VAC/50Hz

  • 400VAC, 7,000W continuous output power
  • Fuel: Diesel, Petroleum, Kerosene (Jet A)
  • Consumption: 10 litres (2,5 gal) per hour
  • Equipped with air intake silencer and high current batteries (add on exhaust muffler optional)
  • Total unit weight: 31kg, with optional muffler 35kg

Version 24/28VDC

  • Perfect to start helicopters and many more applications
  • 24/28 VDC, 300 Amps continuous output power
  • Fuel: Diesel, Petroleum, Kerosene (Jet A).
  • Consumption: 10 litres (2,5 gal) per hour.
  • Equipped with air intake silencer and high current batteries (add on exhaust muffler optional)
  • Total unit weight: 20kg, with optional muffler 25kg

General turbine data

  • Enclosure: Chrom-Nickel
  • Gear: Integrated, maintenance free metal
  • Nominal RPM: 100.000 U/min
  • Nominal Power: 14 hp / 10,6 kW @ ISA standard atmosphere
  • Gearbox output: 20.000 U/min (gear ratio 5:1)
  • Turbinewheel: CNC manufactured from Inconel Superalloy
  • Lubrication: Light version – mixed lubrication
  • Industrial version – oil-circulation system
  • Fuel: Direct start with Jet fuel A1 and Diesel
  • Consumption: 170 ml/min only!!
  • Immediate power (no warm up)
