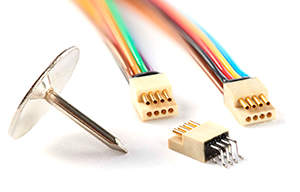

Polarized Nano Connectors for Miniature Electronics

Omnetics’ Polarized Nano (PZN) sized connectors minimize space while offering high signal integrity in today’s ruggedized applications. As our industry continues to focus on compact electronics modules, the miniature PZN series has gained more and more demand in the connector market.

Omnetics can rapidly redesign a standard form to fit a wide variety of customer-specific applications. These ultra-miniature connectors feature Omnetics’ military style pin and socket designs to provide uninterrupted electrical connections for portable applications that are exposed to high shock and vibration environments.

PZN connector contact spacing is set at .025in (.64 mm), and the design uses both male and female contacts in the same polarized insulator. The contacts are beryllium-copper and are plated with nickel and gold to ensure long-range performance. They utilize Omnetics’ flex-pin system for maximum durability.
