Advanced counter UAS solutions for the defence industry

Adam Williams 13 November 2020 (Last Updated November 13th, 2020 14:25)

With the growing threat posed by unmanned aerial systems (UAS), the demand for reliable and effective counter UAS solutions in the defence industry has never been greater.

Sponsored by IEC Infrared Systems Sponsored by Visit Company

IEC Infrared Systems (IEC) has been manufacturing thermal and infrared imaging surveillance systems since its formation in 1999 and has established a reputation as an industry leader in developing counter UAS solutions.

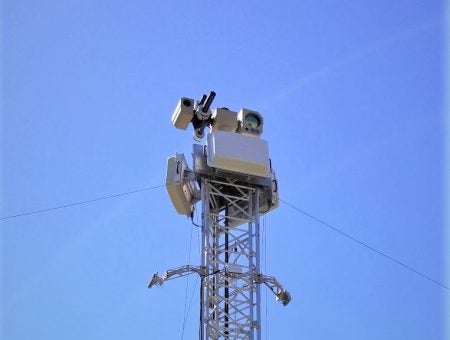

Lycan Counter UAS system for drone detection and monitoring

The company’s Lycan Counter UAS system has transformed counter drone detection, tracking and mitigation through its advanced and cutting-edge technology. Features include IEC Werewolf positioner with a MWIR 40mm-825mm of continuous zoom EO/IR camera system, optical tracking to 4km, long range S band (500m-5km Phantom 4 size detection), short range X band (0m-1000m Phantom 4 size detection), directional and omni-directional target jamming and mitigation and 360º panoramic image creation.

The system also utilizes an additional layer of RF detection, multiple RF and GPS jamming options. All system components utilize LRU (line replaceable unit) configuration. This allows rapid in the field servicing using spares and system reconfiguration for changing mission requirements.

Utilising advanced radars, cameras, and sensors, the Lycan Counter UAS system is suitable for a range of military and commercial applications and enables troops/security personnel to locate, monitor, track and counter small drones that may pose a threat.

The system is mounted on a trailer, making it easy to deploy and relocate. IEC also designs and manufactures its IntrudIR Alert® Command and control middleware providing complete control and configuration of the Lycan CUAS system by a single user. The middleware is also built on a Windows based modular model allowing the inclusion of additional sensors. Most upgrades can be performed in the field as well as communicating with other C2 platforms if required. IEC utilizes a unique heuristic-based target detection and clutter mitigation algorithm to provide concise target alerts and threat priority allowing the operator a clutter free interface and instant high threat target alerts.

Lycan is most effective against multiple, simultaneous fixed and rotary-wing UAS threat targets.

Wolfpack CUAS system

IEC’s Wolfpack CUAS (Counter UAS) system is a shorter range (0m-1000m) integrated system based on some of the same series of tested, fielded components as Lycan

• IEC’s Werewolf positioner, with 25mm-225mm LWIR thermal imager with continuous zoom with optical tracking to 1.5km

• Short range 3D ground/air surveillance radar with detection of a Phantom 4 sized UAS to 1km

• IEC’s IntrudIR Alert middleware system

• RF jamming capability

• Target heuristics (for clutter rejection)

The Wolfpack CUAS can be rapidly deployed for fixed or mobile applications and is ideal for smaller areas of regard. Installations include municipal utilities, sports arenas, and small military bases in urban settings.

There are also several optional elements which can be added to the each of the systems including kinetic response (RWS firing 40mm airburst grenades) for later design spiral, and white spotlight 18 million candle power.

Lycan and Wolfpack has recently completed a nearly monthlong independent testing by the US Government and had a better than 98% detection and tracking score on multiple small UAS targets.

About IEC Infrared Systems

As an industry-leader in the development of counter UAS solutions, IEC’s systems have the ability to detect, identify, and deal with potential threats with a high level of precision and accuracy, making the company’s products ideal for a wide range of military and commercial requirements.

IEC’s experienced in-house mechanical, electrical, and software professionals can design state-of-the-art thermal imaging cameras and infrared equipment for even the most demanding of client requirements.
