ZBD-97 / Type 97 Infantry Fighting Vehicle

ZBD-04, based on an earliest prototype ZBD-97, is a fully tracked infantry fighting vehicle (IFV) operated by China.

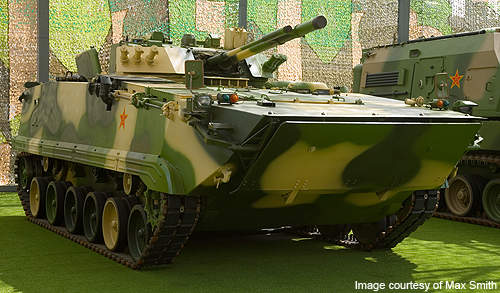

The ZBD-04 is in service with the Chinese Army. Credit: Max Smith/Wikimedia Commons.

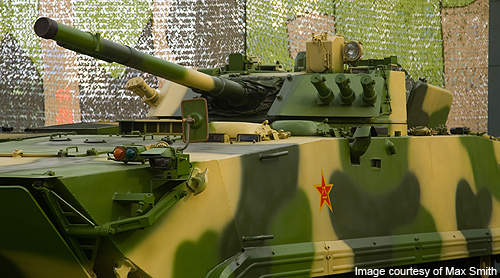

The ZBD-04 is fitted with a semi-automatic 100mm rifled gun/missile launcher.
The ZBD-04 can mount attacks on enemy tanks and armoured vehicles.

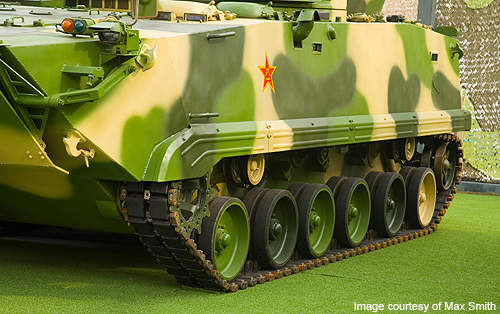

The ZBD-04 has six rubber-tyred road wheels.

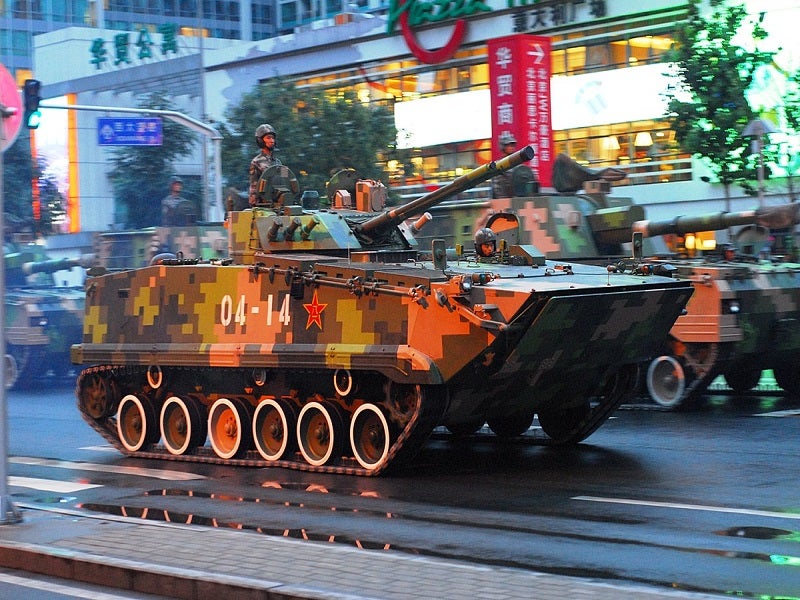

A ZBD-04 IFV participated in the 60th anniversary military parade of China. Credit: Dan/Wikimedia Commons.

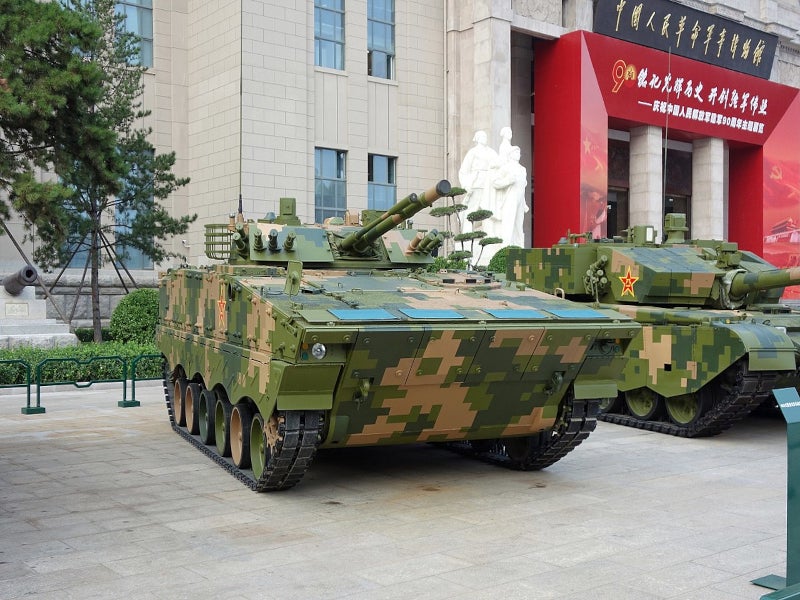

The ZBD-04A was showcased to the public at Theme Exhibition of the 90th Anniversary of Chinese People's Liberation Army. Credit: Tyg728/Wikimedia Commons.

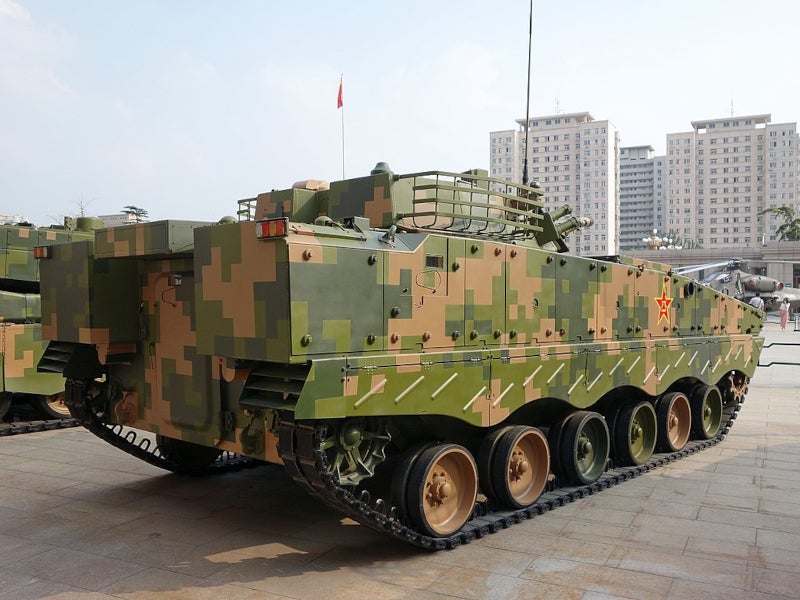

The rear view of the ZBD-04A IFV. Credit: Tyg728/Wikimedia Commons.

The ZBD-04, also known as the ZBD-97, is a fully tracked infantry fighting vehicle (IFV) developed for the Chinese People’s Liberation Army (PLA). ZBD-04 was introduced into the PLA ground forces in 2006.

The vehicle can operate as an independent vehicle as well as with other tanks, such as the Type 96 and Type 99 main battle tanks. It provides protected transport for an infantry squad, fire support for deployed infantry, and can mount attacks on enemy tanks and armoured vehicles. It also demonstrates significant amphibious capabilities.

ZBD-04 is deployed by the armoured units mobilised in the Guangzhou and Nanjing military regions. An armoured recovery vehicle (ARV) variant, which is fitted with a crane on top of the hull, is also manufactured. A further improved variant is called the ZBD-04A.

ZBD-04 fighting vehicle design

The ZBD-04 features a two-man turret mounted on the middle of an indigenously developed hull. The turret is similar to that of the Russian-made BMP-3 IFV. The design incorporates a conventional layout with a welded steel hull.

The vehicle can accommodate a crew of three (commander, driver and gunner) and up to seven troops. The power compartment is located on the forward-right side of the vehicle. The troop compartment is located in the rear of the vehicle.

The troop body section has two large hatches on the roof and a single exit door in the rear. Three observation points, two on either side of the hull and one in the exit door, are provided for firing. The firing ports allow the troops to fire assault rifles and light machine guns from inside the vehicle on the move.

The vehicle is equipped with two large water jet ports on the rear of the vehicle for high-speed water travel. The water jets allow the vehicle to swim from an amphibious warfare ship to shore. A hydraulically operated wave fence on forward prevents the front part of the vehicle from overflowing during water travel.

Armaments

The main armament fitted on the turret is a semi-automatic 100mm gun/missile launcher. The dual-way stabilised weapon system can fire both HE-FRAG rounds and the 3UBK10 anti-tank guided missiles (ATGM). The HE-FRAG round can be fired at a rate of ten rounds a minute for an effective range of 4,000m.

The 3UBK10 ATGM can be fired against armoured military vehicles, fortifications and low-flying helicopters. It has a maximum range of 4,000m. Around eight missiles are housed inside the turret.

A 30mm coaxial automatic cannon serves as a secondary weapon. It can fire armour-piercing (AP) and HE-FRAG rounds at a rate of 300 rounds a minute for a range of up to 2,000m. A 7.62mm coaxial machine gun is also fitted on the vehicle.

NBC protection system

The ZBD-04 is fitted with a collective nuclear biological and chemical (NBC) protection system, with its air filter placed at the rear end of the turret to the right. The welded steel armour protects against small arms and shell splinters.

The vehicle misses the ARENA-E active protection system fitted on the modern version of the BMP-3, but is believed to be fitted with its own laser warning and countermeasures system. The ZBD-04 also features a three-barrel smoke grenade launcher.

Observation and fire-control

Three periscopes are housed in the driver’s hatch mounts. The central periscope can be replaced with an image intensifying periscope for night-vision purposes. Two headlights are fitted on the front armour of the hull.

A main-sight, a combined image-intensified day or night-sight, and a standby day-sight are provided for the gunner.

The commander has a day-sight and a combined day and image-intensified night-sight.

The fire-control system integrates a ballistics computer, an electro-mechanical gun stabiliser, and a laser range finder.

Propulsion

The ZBD-04 is powered by a newly developed liquid-cooled diesel engine providing a maximum road speed of 65km/h and swimming speed of 20km/h. The vehicle has a maximum range of 500km.

Mobility

The ZBD-04 features six road wheels with three track support rollers attached to the front drive sprocket on either side of the vehicle. The unevenly spaced road wheels feature rubber tyres.

The first, second and sixth road wheels are fitted with hydraulic shock absorbers. Removable rubber pads are fitted on the metallic tracks to improve the ride comfort of passengers.

ZBD-04A design and features

The advanced version ZBD-04A is an amphibious armoured fighting vehicle equipped with additional, advanced armour to provide resistance against rocket-propelled grenades and anti-tank guided missiles.

The forward chassis can withstand 30mm autocannon fire, while the sides of the hull can offer resistance against 14.5mm machine bullets.

The ZBD-04A can attain a maximum speed of 75km/h. It can use its tracks to ford rivers and lakes.

The fire control system of the ZBD-04A comprises a ballistic computer, an electro-mechanical gun stabiliser, and a laser rangefinder.
