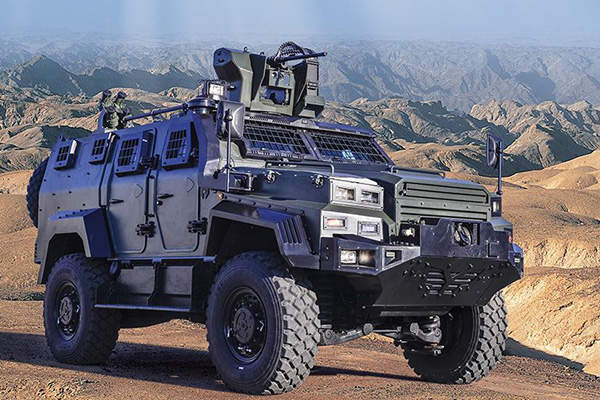

Ejder Yalçin, a new member of the Ejder family of vehicles, is a 4×4 tactical armoured combat vehicle designed and manufactured by Nurol Makina. Design studies on the vehicle were initiated in the last quarter of 2012 and a pre-prototype of the base vehicle was exhibited at the IDEF in 2013. Mass production of the vehicle began in May 2014.
Ejder Yalçin offers high-ballistic protection and can be used in diverse missions, including reconnaissance, command and control, and homeland security applications. The vehicle is primarily intended for use by Turkish military and security forces.
The Ejder Yalçin vehicle features a V-shaped hull design, integrating floating floor plates and blast mitigation seating to provide protection against mines and improvised explosive devices (IED). The vehicle features an ergonomic and comfortable seating layout, which can accommodate up to 11 personnel.
The vehicle features easy-to-enter and exit door configurations for the crew. Other optional equipment includes a rescue winch, day or night-vision systems, rear ramp, and explosion suppression and fire-fighting systems for the crew compartment.
The vehicle can be reconfigured as a reconnaissance, command and control, internal security, ambulance, chemical biological radiological nuclear (CBRN) vehicle, weapon carrier and combat vehicle, so that it meets the multiple mission requirements of the users.
The base vehicle has a length of 5.42m, width of 2.48m and height of 2.3m. Its gross weight ranges between 12,000kg and 14,000kg, and payload carrying capacity is up to 4t.
Armament and self-protection
The vehicle is equipped with optionally integrated, remote-controlled and manually-operated weapon stations. It is fitted with two gun ports on the roof. The optional armament mounted on the vehicle includes 7.62mm and 12.7mm machine guns, a 25mm anti-aircraft gun and a 40mm automatic grenade launcher.
The SCTV system is a lightweight integrated armoured vehicle developed by Textron Marine & Land Systems and Granite Tactical Vehicles.
The V-shaped hull of Ejder Yalçin offers a high level of protection against IEDs, mines and ballistic threats. The ballistic protection can be further increased with the integration of add-on armour, where an optional cage armour is offered for protection against rocket attacks. The vehicle can be further fitted with smoke grenade launchers for increased survivability.
Engine and performance
Ejder Yalçin is fitted with a Cummins engine which produces a maximum power of 300hp at 2,100rpm. The engine is coupled to fully automatic transmission with hydrodynamic torque converter.
The vehicle features a three-speed gear box and a power-assisted steering. It is also fitted with a secondary emergency steering pump that operates in the event of engine failure.
Ejder Yalçin has a maximum speed of 110km/h and a cruising range of 600km. It can accelerate from 0km/h to 40km/h within six seconds. It comes with a double wishbone, and independent suspension system for all wheels. It is equipped with latitudinal and longitudinal differential locking systems as well as large diameter and wide tires. The central tire inflation system regulates the pressure according to the terrain conditions.
The vehicle has a wheel base of 3,100mm and ground clearance of 400mm. It has the capability to climb obstacles of 0.5m, can cross 1.1m-wide trenches and ford a depth of 0.7m. It has a gradient of 70% and a side slope of 30%. The turning radius of the vehicle is 7.5m.
