When drones go rogue - Plextek takes on small enemy UAVs

Think of a military forward operating base or a government facility, bristling with security and deterrents at ground level.

But what’s to stop a commercially available micro or nano UAV flying low over the barriers or through a window, gathering intelligence with an on-board camera, or even delivering a small charge or chemical or biological threat?

Traditional air defence technology is aimed at big manned platforms moving fast. As well as being tough to spot with the human eye or using electro-optical systems, small, composite UAVs have a small radar cross-section (RCS), and as they fly slowly and at low altitudes they easily blend into surrounding clutter.

Turning ground radar to the skies

"What’s to stop a commercially available micro or nano UAV flying low over the barriers or through a window."

British design consultancy Plextek believes it has come up with a solution. Realising that ground surveillance radar is already optimised to detect slow-moving targets against a cluttered background, company engineers had the brainwave to turn its gaze skyward.

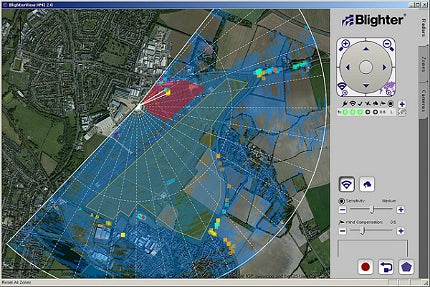

Nicholas Hill, Plextek’s director of defence and security, explains: "We internally developed a radar system called Blighter, designed for battlefield use. Lightweight and man-portable, you can pitch it up to provide perimeter security for your forward position. We’re experimenting and tuning it to detect UAVs rather than things on the ground; it’s already designed to detect people crawling along the ground, in other words small things moving slowly, just on the ground rather than in the air."
