QinetiQ Group has patented a non-woven composite material with reinforcing fibers and shape memory alloy wires, held together by a polymer thread. The material offers impact performance and penetration resistance. GlobalData’s report on QinetiQ Group gives a 360-degree view of the company including its patenting strategy. Buy the report here.

Smarter leaders trust GlobalData

Report-cover

Premium Insights QinetiQ Group Plc - Company Profile

Buy the Report

Premium Insights

The gold standard of business intelligence.

Find out more

According to GlobalData’s company profile on QinetiQ Group, was a key innovation area identified from patents. QinetiQ Group's grant share as of April 2024 was 50%. Grant share is based on the ratio of number of grants to total number of patents.

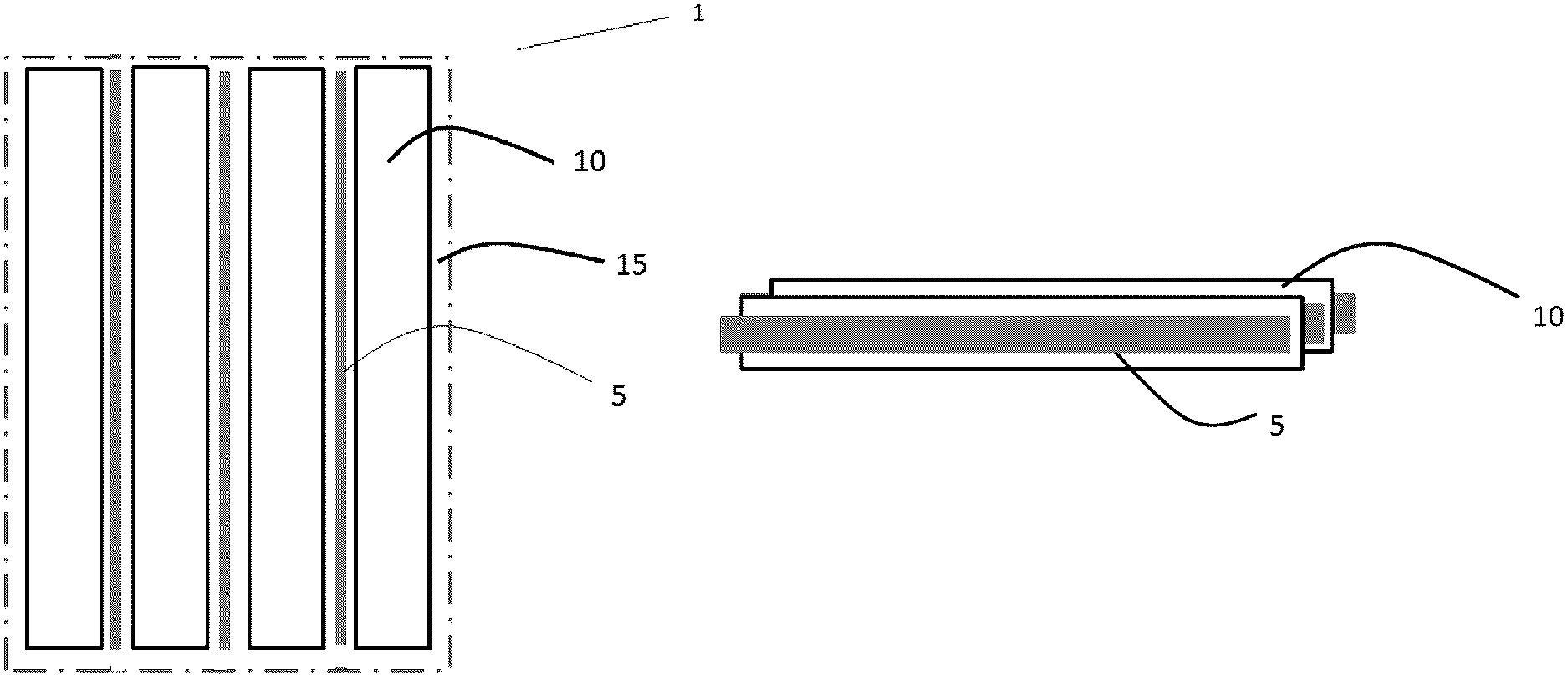

Non-woven composite material with impact resistance and penetration resistance

Source: United States Patent and Trademark Office (USPTO). Credit: QinetiQ Group Plc

A recently granted patent (Publication Number: US11926719B2) discloses a composite material comprising a preform material with reinforcing fibers and shape memory alloy (SMA) wires, held together by a polymer thread. The SMA wires and reinforcing fibers are not woven together, and the preform material does not contain polymer resin. The composite material can consist of a single ply or multiple plies, with the SMA wires and reinforcing fibers arranged in a single direction, which can vary in different plies. The composite material is suitable for various applications, including aircraft structural components like nacelles.

The patent also covers a method of making the composite material, involving curing a prepreg material with reinforcing fibers and SMA wires coated with uncured polymer resin. The polymer resin can be cured using heat, UV, and pressure, with various curing agents like amines. The method includes forming a stacked preform by layering preform materials and applying polymer resin before curing to create the composite material. Additionally, the patent describes a head component for automatic fiber placement devices, aligning reinforcing fibers and SMA wires in a unidirectional manner for efficient manufacturing of the composite material. Overall, the patent provides a detailed insight into the composition, manufacturing process, and potential applications of the innovative composite material.

To know more about GlobalData’s detailed insights on QinetiQ Group, buy the report here.
