ECOTEST Radiation Measurement Instruments

ECOTEST is a well-known developer and manufacturer of devices and systems of radiation measurement in Ukraine and worldwide.

The company produces portable dosimeters (radiometers), personal Geiger counters, search dosimeters, devices for radiation and chemical reconnaissance, warning devices, detecting units, data panels and computer-aided systems.

We export our products to more than 60 countries all over the world and have some 20 dealers globally. Our dealer network is represented in countries such as Russia, Republic of Korea, the US, Bulgaria, the UK, Australia, Argentina, Brazil, Greece, Italy, Egypt, Kazakhstan, Germany, Canada, Turkey and Japan.

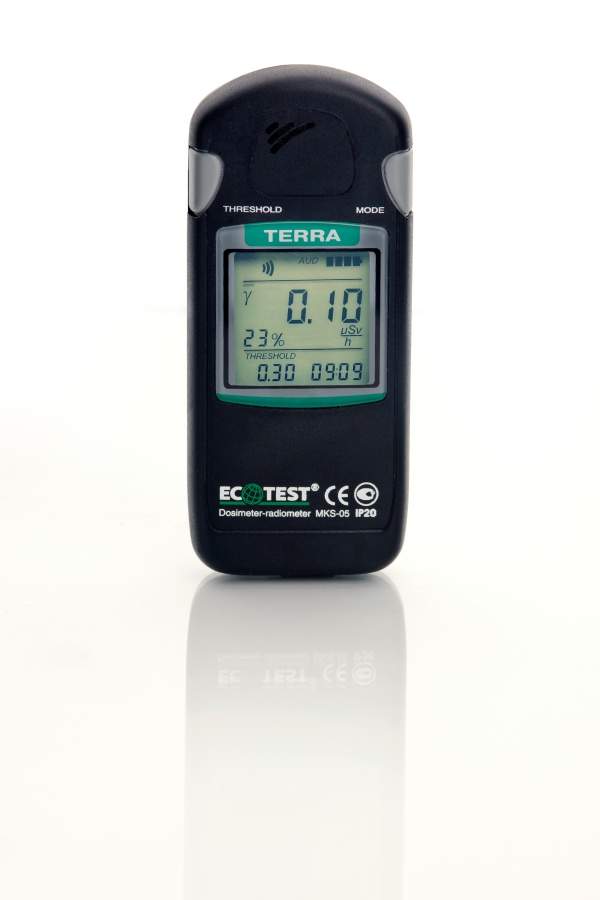

Dosimeter-radiometer

ECOTEST’s dosimeter-radiometer, MKS-05 TERRA, has a built-in gamma, beta-sensitive Geiger-Muller counter and five independent measuring channels with alternate indication of data on the single liquid crystal display. It is able to conduct a prompt evaluation of gamma background within ten seconds and transfer the measured data to a PC via Bluetooth.

The device conforms to CE standards and has proved itself in harsh conditions, such as deserts in Iraq and Kuwait.

Applications include:

• Measurement of gamma and X-ray radiation ambient dose equivalent rate
• Measurement of gamma and X-ray radiation ambient dose equivalent
• Measurement of surface beta-particles flux density
• Measurement of ambient dose equivalent accumulation time
• Real-time measurement (clock), alarm clock

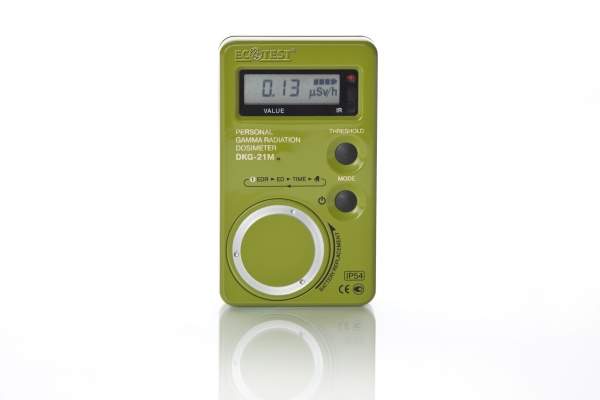

Personal gamma radiation dosimeter

The DKG-21M personal gamma radiation dosimeter has been designed for use by armies, ministry of emergencies and civil defence in conditions of significant temperature oscillations and highly dusty atmospheres. It has a damp and dustproof body with a high ingress protection rating.

The radiation dosimeter can be applied together with PDC ECOMONITOR software for programming, reading and processing of the dosimeter measurement results.

Applications include:

• Measurement of individual equivalent dose rate of gamma radiation
• Measurement of individual equivalent dose of gamma radiation
• Clock, alarm clock

The device conforms to CE standards.

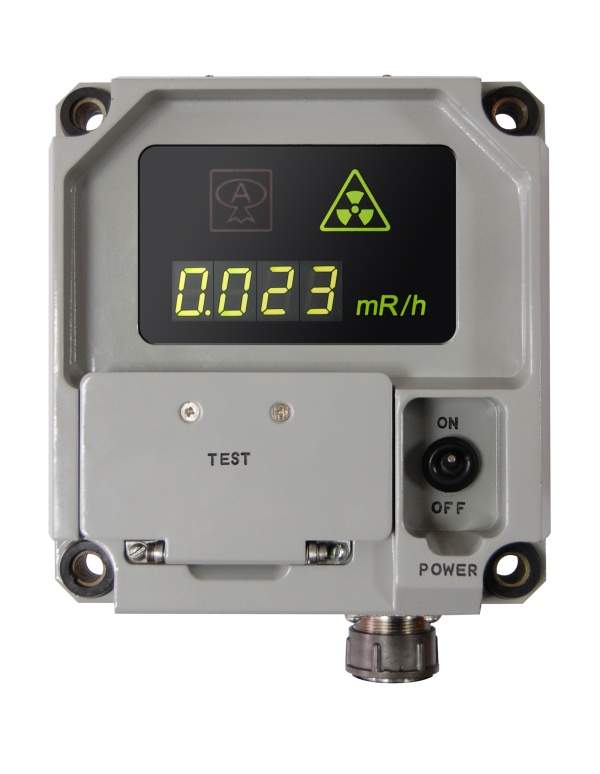

Radiation survey device

The DRG-T radiation survey device has been designed for use in special-purpose vehicles, in particular in radiochemical reconnaissance units of civil defence and armed forces, to control continuously and measure the exposure dose rate of gamma and X-ray radiation. It can also provide audio and light alarms in the case of dangerous levels of radiation, and issue commands to start the actuators of protection equipment.

The device has high shock and vibration resistance and an operating temperature range from -40°C to +60°C.

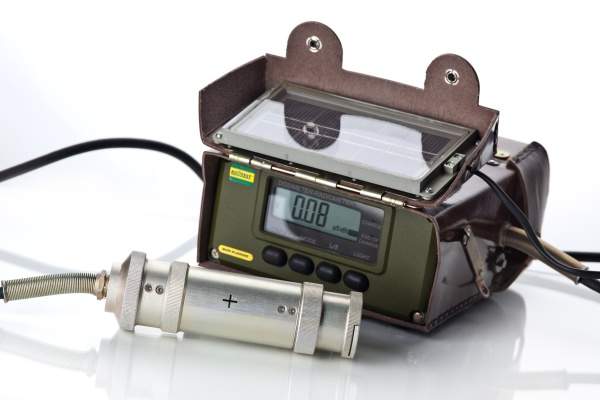

Multipurpose dosimeter-radiometer

The MKS-U multipurpose dosimeter-radiometer has a wide operating temperature range (from -40°C to +50°C) and the option to operate under atmospheric precipitation, dusty conditions and underneath the remote gamma radiation detector in water at depths of 0.5m. It sends the information about measurements to a personal computer via the infrared port.

The device includes:

• Gas-discharge Geiger-Muller counters without return run of counting response
• Silicon beta radiation detector
• Emergency scintillation gamma radiation detector (Csj-scintillator-photodiode)

Applications include:

• Measurement of ambient dose equivalent rate of gamma and X-ray radiation
• Measurement of ambient dose equivalent of gamma and X-ray radiation
• Measurement of surface beta-particles flux density
• Measurement of accumulation time of gamma and X-ray radiation ambient dose equivalent

Gamma radiation detecting unit

The detecting unit BDBG-09 has been designed to measure the ambient dose equivalent rate of gamma radiation. It can be used both within data panels and automated systems of radiation monitoring.

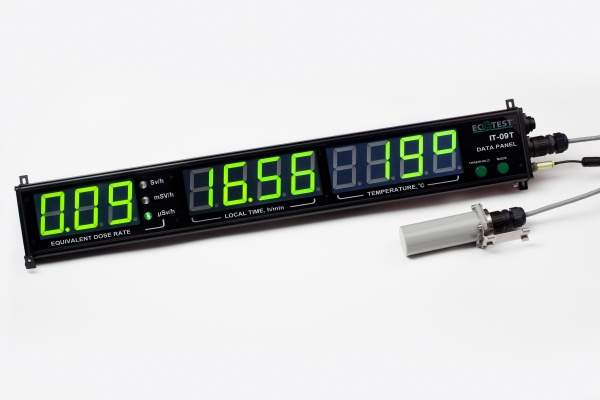

Gamma radiation data panel

The IT-09T data panel:

• Displays measurement results of ambient dose equivalent rate (DER) of gamma radiation obtained from the BDBG-09 detecting unit of gamma radiation
• Has an audio and light alarm when threshold levels of gamma radiation DER are exceeded
• Features real-time air temperature display

ISO 9001-2008 certification

ECOTEST has been working in accordance with the introduced and implemented Quality Management System since 2006, which is ascertained by the ISO 9001-2008 certificate of standard compliance, issued by the International Association, Bureau Veritas.
