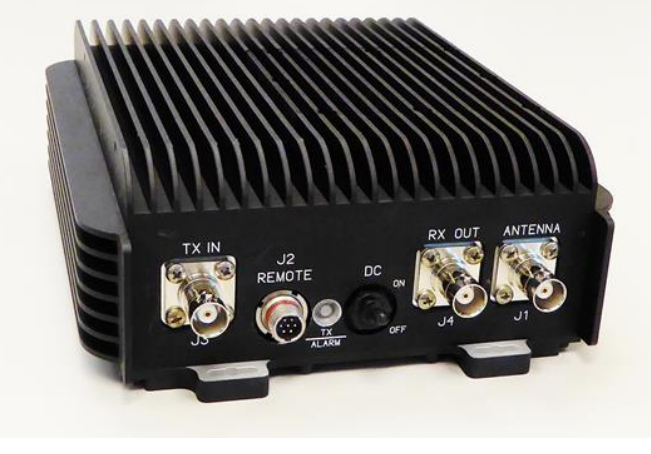

The Model AR-50 is a portable, lightweight, fully automatic band-switching RF booster amplifier for multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and emerging waveforms.
AR Modular RF designs and manufactures Tactical Booster Amplifiers, RF Amplifier Modules and Rack Mount and Amplifier Systems that cover a wide frequency spectrum from 30 kHz to 3 GHz and offer diverse ranges of power from 10 Watts to 1000 Watts supporting legacy and emerging waveforms. Some of the most innovative, dependable, and durable RF Amplifier Modules and broadband solid-state RF amplifier systems in the world, these systems are used for tactical military communications, medical, scientific, and industrial applications.
From market pioneers to industry technology trailblazers we have always recognized the critical elements that drive the market: technological performance, dependability and time to market. We pride ourselves in developing plug and play products and turnkey solutions. Simply put, we consistently deliver and strive to exceed our customer expectations.
We are focused. Our primary focus is on RF amplifiers, boosting signals, and providing turnkey solutions to one of the most demanding customers in the world—the military. We work as a trusted partner to provide the most innovative solutions in the business. We look at the entire picture. We take a software savvy approach and balance size, weight, and power requirements to provide an optimal solution for both hardware and software defined solutions.
AR Modular RF
Emerging Fast Switching MANET, MESH Networking, and legacy waveforms supported
Waveforms are evolving at a rapid pace to provide enhanced communication capabilities to the modern-day war fighter. AR Modular RF continues to support legacy waveforms such SINCGARS, HAVEQUICK, HAVEQUICK II, AM, FM, HPW, DAMA, IW, ANW2, SRW and new and emerging waveforms that support fast switching for MANET and MESH Network applications. AR Modular RF amplifiers support the HF, VHF, and UHF frequency bands with new and emerging technologies that can and will support much more.
SATCOM, legacy, and MUOS waveforms
Satellite communication waveforms are providing enhanced communications (voice, video, data) capabilities to the modern-day war fighter. AR Modular RF continues to support legacy SATCOM waveforms, and the new Mobile User Object Network (MUOS) waveform.
Man-portable, man-pack and vehicle-mounted solutions
Man-portable, man-pack and vehicle-mounted models are available. Whichever you need, when you choose AR Modular RF you get booster amplifiers that keep on working through virtually every imaginable hazard.
AR Modular RF provides a full line of amplifiers that cover the broadest frequencies and waveforms. Many amplifiers incorporate RF auto-sensing circuits to switch from receive to transmit as needed. They include Automatic Level Control (ALC), appropriate low pass harmonic or band pass filters, protection against antenna mismatch (VSWR) and overheating. Several models have fully automatic band selection and are SINCGARS-compatible with high speed filter switching to protect other nearby communication networks; and they are fully compatible and manufacturer independent with most radio transceiver systems supporting multiple manufacturer’s tactical radios.
AR Modular RF booster amplifiers pass the toughest battle tests
It isn’t just experience, technological advances, or even the commitment of AR Modular RF that should inspire trust. Before AR Modular RF military booster amplifiers are offered for sale, they’re tested in real battle conditions to assure they will perform in the toughest environments.
These battle-tested booster amplifiers are lightweight and compact. Every model incorporates RF sensing circuits to switch from receive to transmit. They all include automatic level control, low pass harmonic or band pass filters, protection against antenna mismatch (VSWR) and overheating.
Robust booster design for harshest defense environments
No booster amplifiers are tougher, more dependable or more versatile. Most importantly, no booster amplifiers are as easier to use than the amplifiers made by AR. AR booster amplifiers ensure easy set-up with clean, and high-performance signals. They deliver high peak AM signals and low distortion with only small input signals. They continue to provide full power despite high VSWR conditions, such as when on the ground or up against a building. Their sophisticated DC power systems have full DC spike and surge protection. DC regulation keeps RF output constant even when the input voltage drops to low levels.
The bottom line is that they do the job and go the distance through shock, vibration, extreme temperatures, and even water. When troops have a need to go through hell and high water, these are the booster amplifiers that go with them.
Rack Mount Amplifiers and Systems with quick prototyping capability
AR Modular RF designs and manufactures Rack Mount and Amplifier Systems that cover a wide frequency spectrum and offer diverse ranges of power. Some of the most innovative, dependable, and durable RF Amplifier Modules and broadband solid-state RF amplifier systems in the world, these systems are used for communications, medical, scientific, and industrial applications.
The series of rack-mounted amplifiers enable rapid and inexpensive prototyping of custom solutions when tailored, application specific performance is required. Designed for linear operation, AR Rack Mount Series amplifiers support the latest digital modulations and emerging technologies. With features including maximum level control, automatic level control, Ethernet control, and gain control – all managed locally and remotely – ARM Rack Mount Series amplifiers ease system integration and get your products into production and delivered to market faster with proven technology.
The Model AR-20 is a portable, lightweight, fully automatic band-switching RF booster amplifier for use with multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and networking waveforms.
The Model AR-20B is a portable, lightweight, fully automatic band-switching RF booster amplifier for use with multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and networking waveforms.
This application note describes three power control features available on AR-5000 Series amplifiers: GC (Gain Control), MLC (Maximum Level Control) and ALC (Automatic Level Control). Each of the three power control features, although related, are independent of one another and each serve a unique function.
Located in Bothell, WA, AR Modular RF manufactures and distributes RF amplifier modules and broadband solid-state RF amplifier systems that play a critical role in wireless and radio communications, military communications, electronic warfare, electronic countermeasures, and homeland security.
Located in Bothell, WA, AR Modular RF manufactures and distributes RF amplifier modules and broadband solid-state RF amplifier systems that play a critical role in wireless and radio communications, as well as military communications.
You need an RF power amplifier. You have measured the power of your signal and it is not enough. You may even have decided on a power level in Watts that you think will meet your needs.
The AR Modular RF Model AR-50 Booster Amplifier provides superior up and downlink performance for enhancing UHF Satellite communications. Properly setting up the Receive path will maximize the link quality and reliability.
AR Modular RF supplies powerful, innovative products that play a critical role in military communications and electronic warfare. These tactical booster amplifiers are designed for vehicle, man-pack and airborne applications.
AR Modular RF is a world-class manufacturer and solution provider of RF booster amplifiers, systems and modules. Its products play a critical role in military communications and electronic warfare.
Maintaining clear, dependable communications is essential to the successful completion of missions, and often saves lives. Forces around the globe rely on lightweight AR Modular RF Tactical Booster Amplifiers for long-range communications and connectivity in even the most extreme conditions.

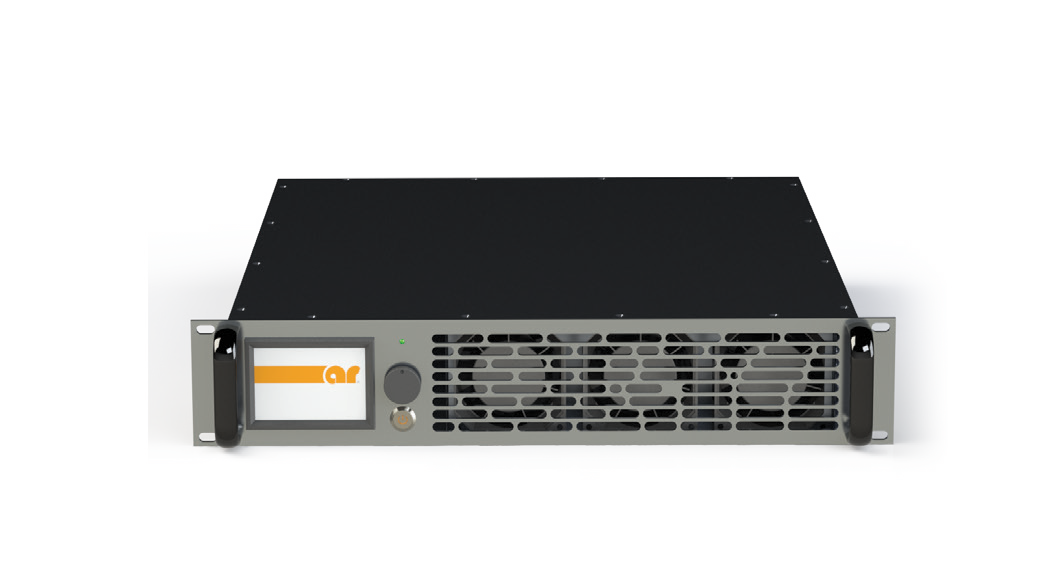

The new AR-5010 rack-mounted amplifier is designed for quick, inexpensive prototyping. With high characterization and faithful reproduction of input signal in any waveform, the AR-5000 series amplifiers can deliver a fast time to market solution for any need.
The new AR-5000 Series of rack-mounted amplifiers enable rapid and inexpensive prototyping of custom solutions where tailored, application specific performance is required.
AR Modular RF will provide its AR-50SE tactical booster amplifier to Collins Aerospace to be used in its Handheld, Manpack and Small Form Factor (HMS) Radio Program for the US Army.
AR Modular RF has released a new tactical booster amplifier that extends the range of communications in the 30-88 MHz frequency band. The Model AR-50SE is a fully automatic band-switching RF booster amplifier for multi-band Tactical Radio equipment employing legacy, proprietary and emerging waveforms.
