ND-BU002 High-End Anti-Drone System is an upgraded version based on ND-BU001 for drone defence and critical area protection. Adopting advanced 3D pulse doppler radar, the system has extended detection range dramatically. The system mainly consists of Detecting Unit, Jamming Unit and Camera Unit.

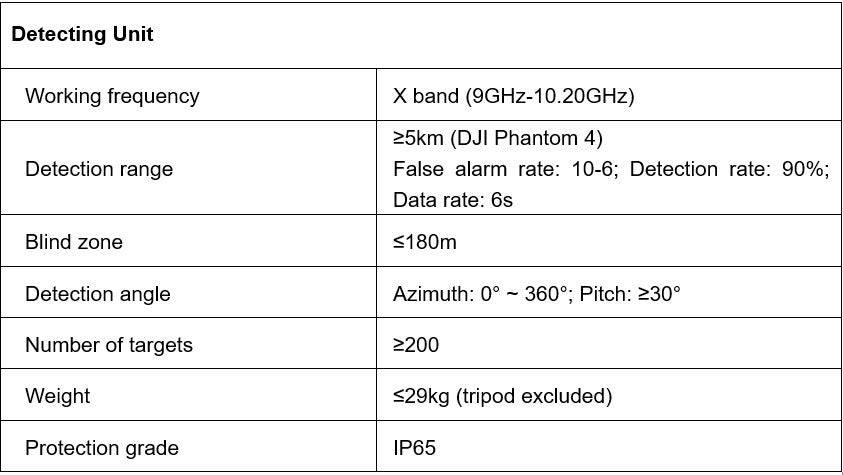

  • The Detecting Unit, which employs the advanced 3D pulse doppler radar, can detect and track long-distance drones, in both horizontal angle and vertical angle.

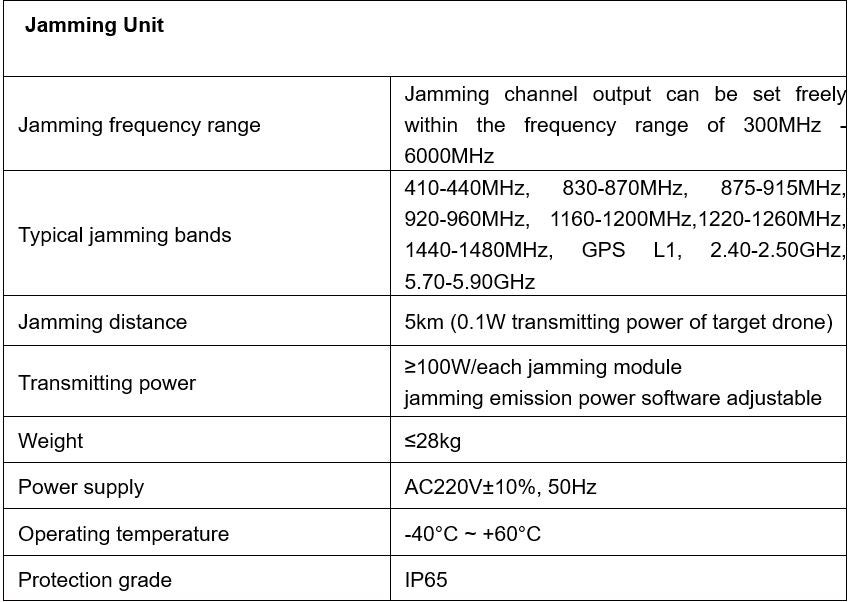

  • Guided by the accurate drone position information, the Jamming Unit with tall antenna and low power jammer will interfere with the remote control signals and navigation signals of the drone and force it to land or return.

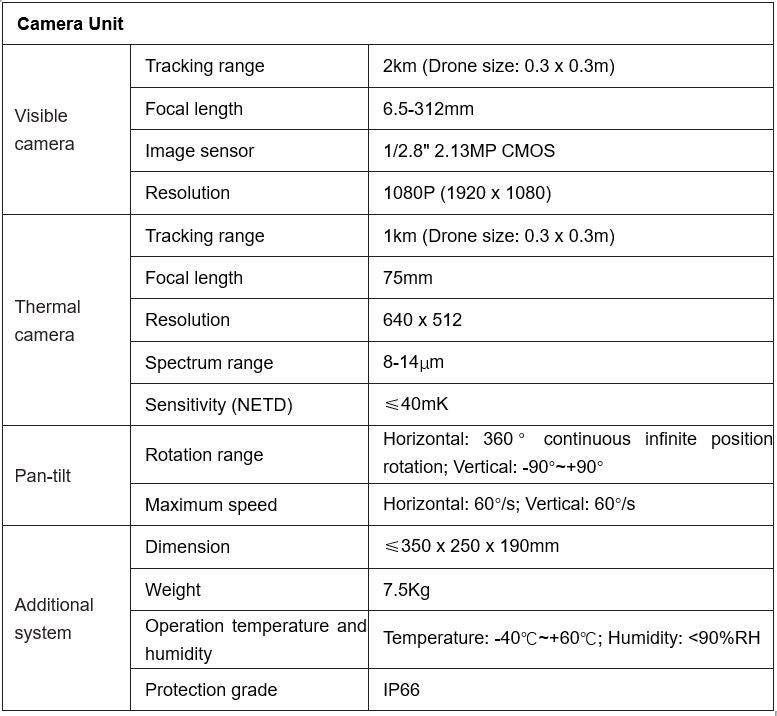

  • The Camera Unit can efficiently record the tracks of the detected drone for further analysis and assist the Detecting Unit with more accurate monitoring.


Main Features of Detecting Unit

  • Advanced radar technology
  • Multi-dimensional precision detection
  • Superior detection performance for Low-Slow-Small (LSS) targets
  • Lightweight, portable and adaptable

Main Features of Jamming Unit

  • Full-band jamming, software definable
  • Digital jamming source design
  • All-in-one design
  • High-power broadband amplifier design
  • Easy installation and wide application

Complete Set

  • Detecting Unit
  • Jamming Unit
  • Camera Unit
  • Control Software
  • Power Cable
  • User Manual
