Tulpar Infantry Fighting Vehicle, Turkey


Otokar

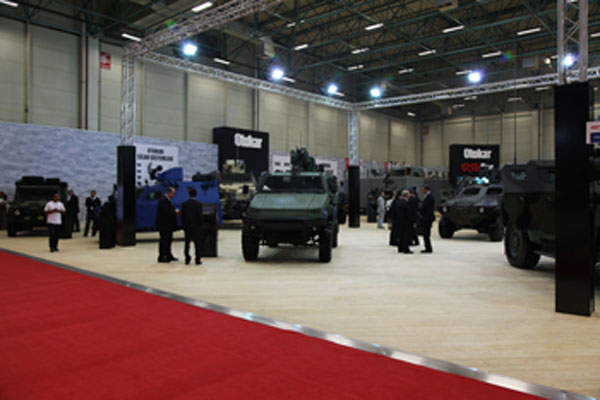

Tulpar is a multi-purpose armoured infantry fighting vehicle (IFV) designed and manufactured by Otokar Otobus Karoseri Sanayi (Otokar) for the Turkish Armed Forces. The vehicle was unveiled at the International Defence Industry Fair (IDEF) in May 2013.

The IFV will also be available in variants such as reconnaissance, command-and-control, personnel carrier, mortar, recovery, launch rocket system, air defence, ambulance and anti-tank vehicles.

Tulpar IFV design and features

The Tulpar IFV is designed primarily to safely transport infantry to the battlefield. It can, however, be used for other purposes such as urban and peacekeeping missions too.

The vehicle measures 7.23m in length, 3.4m in width and 3.18m in height. It has a ground clearance of 0.45m and weighs 32,000kg.

The forward section of the vehicle accommodates a driver, while gunner and commander are seated in the centre. The troop compartment at the rear houses four infantrymen each side in individual mine resistant seats containing five-point safety belts. An integral door, placed in the centre at the rear of the hull, allows the infantrymen to enter and leave the vehicle.

The vehicle is fitted with an air conditioning system to minimise the crew fatigue.

The vehicle offers superior fire support and mobility. It can be transported by Airbus A400M military transport aircraft and can carry a payload weighing between 30t to 45t.

"The vehicle is fitted with an air conditioning system to minimise the crew fatigue."

Other equipment fitted to the Tulpar includes radio equipment, a global positioning system and an automatic fire suppression system. Optional equipment includes an auxiliary power unit, pre-heating system and C4I equipment.

Armament and protection features of Tulpar

The Tulpar is equipped with Mizrak remote controlled turret system armed with a 30mm dual-fed automatic gun and a 7.62mm coaxial machine gun.

A full range of electro-optic sensors are mounted on the Mizrak turret to provide the crew with 24-hour visibility in all weather conditions. The 30mm main cannon has an ammunition capacity of 210 rounds, while the machine gun can be loaded with up to 500 ready-to-fire rounds. The new generation digital fire control system optimises the firing accuracy.

The externally-mounted 30mm gun can fire within an elevation of +60° and depression of -10º. It has 360° turret traverse. A cooled thermal charge-coupled device (CCD) day camera mounted on the IFV's commander and gunner sights enables the observation of targets.

"The vehicle can also be fitted with four smoke grenade dischargers on each side of the turret."

The vehicle can also be fitted with four smoke grenade dischargers on each side of the turret. The turret can be optionally armed with L-UMTAS long range anti tank missiles.

The Tulpar offers superior protection for the crew, thanks to its all-round ballistic protection and Nuclear, Biological and Chemical (NBC) protection system. The protection level offered by the vehicle is STANAG 4569 level two, which can be optionally upgraded to STANAG 4569 level five.

Engine and mobility of Otokar's new IFV

The Tulpar IFV is powered by Scania DSI 14l or 16l V8 turbocharged diesel engine, which produces a power of 810hp at 2,150rpm. It is mated with 32-speed automatic transmission SAPA SG-850. The power to weight ratio of the vehicle is 25.3hp/t.

The vehicle provides superior all-terrain mobility running on seven dual rubber-tyre wheels on each side. It can accelerate to a speed of 32km/h in six seconds and accomplish a maximum speed of 70km/h on roads. The running gear includes a drive sprocket at the front and an idler at the rear. The armour plates provide protection for the upper part of the suspension.

The IFV can reach a maximum range of 600km on road. It can negotiate a gradient of 60% and side slope of 40%. It is capable of crossing vertical obstacles of 0.8m and trenches of 2.6m.
