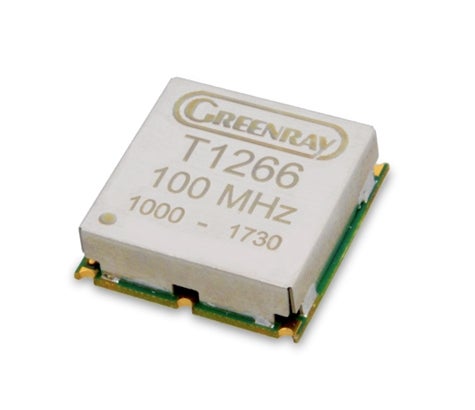

T1266 series

The new T1266 temperature compensated oscillator is available from 50MHz to 125MHz, with sinewave output to drive a 50Ù load.

The T1266 delivers low-phase noise down to a floor of -165dBc/Hz – OCXO-like performance without their input power requirements and warm-up characteristics.

T1266 provides temperature stability down to ±0.5ppm over temperature and features a low-profile, 17.3mm square package and a 3.3VDC or 5VDC supply. The T1266 has external voltage control with sufficient pull range to cover the total stability of the oscillator over the lifetime of the part.

The T1266 is designed for mobile communications and instrumentation applications, as well as PLL and up-conversion apps.

T1266 TCXO Environmentals:

Shock: per MIL-STD-202, Meth 213, Cond F
Vibration: per MIL-STD-202, Meth 214, Cond I – F
Storage temperature: -55°C to 95°C

Greenray Industries is a leading supplier of high-precision, quartz-based oscillators for use in wireless, wired telephony, aerospace, military, satellite, and other communications applications.

Information regarding the T1266 Series TCXO and all Greenray products is available at www.greenrayindustries.com.

Product info: [email protected]
