HUBER+SUHNER

Reliable, High-Performance Solutions

RF-over-Fiber

HUBER+SUHNER

RF-over-fiber

The RF-over-Fiber Series enables the use of Radio Frequency and Fiber Optics in a single system.

With these two technologies forming a part of HUBER+SUHNER's core technology offering, we are using our vast experience and expertise to deliver best-in-class conversion modules.

Key benefits of combining Radio Frequency and Fiber Optics in a single solution:

  • No changes required to existing RF infrastructure
  • Secure
  • Lightweight
  • Covers greater distances (more than 100 km) with less loss
  • Wide frequency ranges available
  • Flexible connectivity options
  • Reduced total cost of ownership and future-proof

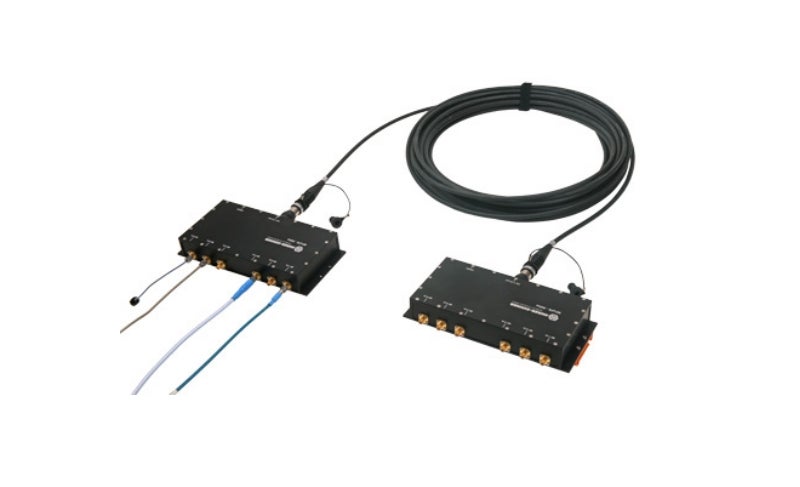

RF-over-Fiber (RFoF)

  • Frequency range from 1 MHz to 6 GHz
  • Available in simplex and duplex systems
  • Single mode solution enabling distances of more than 100 km
  • Standard modules available in 6 and 12 ports
  • QMA and Q-ODC-12 as standard connectors

GPS-over-Fiber (GPSoF)

  • Frequency at 1.5 GHz
  • L1 Band with standard modules*
  • Single mode solution enabling distances of more than 100 km
  • Available as a single port or four port receiver module
  • QMA and FC as standard connectors

LAN-over-Fiber (LANoF)

  • Data rate: 1,000 Base-SX (1 Gbps)
  • Multimode, bi-directional solution enabling distances of up to 500m
  • Standard modules available in six and 12 ports
  • RJ45 and Q-ODC-12 as standard connectors

Available Downloads

Download

Defence Reliable, high-performance solutions
