Off-Road Propulsion Systems for Wheeled Military Vehicles

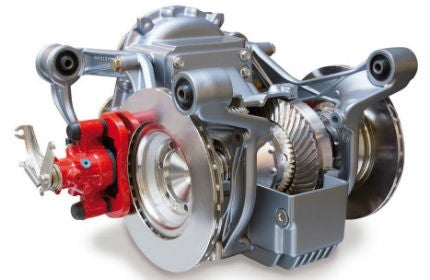

Rear Axle Differential with Add-on Flanged Transfer Case

ECS

header

ECS has create a rear axle differential with directly mounted two-speed transfer case.

Features and specifications

  • Gear ratio high: 1.06
  • Gear ratio low: 2.12
  • Max. input torque TC: 3,560Nm
  • Max. input speed: 3,700 min-1 in high gear
  • Weight (dry): 140kg
  • Flanges acc. DIN ISO-T120
  • Aluminium housing
  • Hi/Low shifting and differential lock pneumatically actuated
  • Pneumatically actuated longitudinal differential lock
  • Climate area C1 to A1 according to STANAG 2895
  • Inboard brakes
  • ECS-T capable (optional)
  • Used in high mobility multi purpose vehicles

Available Downloads

Download

Rear Axle Differential with Add-on Flanged Transfer Case ECS's latest rear axle differential contains smarter technology and is more lightweight than its predecessor.
