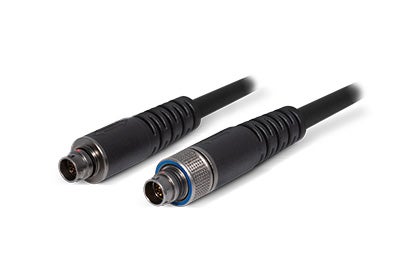

ODU AMC® High-Density

ODU AMC

High density lead

With a diameter of less than 10mm to 18.5mm and a contact density of up to 40 contacts, the ODU AMC High-Density series proves that premium quality can also come in small packages.

In addition to the High-Density signal connector, the range also includes versions for 'Power' (up to 15 A) and 'Data Transfer' (USB 3.0 with 5A power) in the most compact space. The range also have:

  • Smallest dimension
  • Compact design
  • High contact density
  • System solution
  • Innovative options for assembly and extrusion for the cable bend relief
  • Quick and easy demating
  • Low space requirements for devices
  • Low force required

Features:

  • 2 - 40 poles
  • Watertight protection class IP 68
  • Break-Away for maximum safety
  • Operating temperature range from -51° C (-60° F) to +125° C (+257° F)
  • Light, compact and easy to use - blind mating is also possible
  • Maximum operating reliability thanks to mechanical keying and visual colour coding
  • Salt spray resistance
  • Connection to flex or printed circuit board solutions on the receptacle side
  • Innovative options for assembly and extrusion for the cable bend relief
  • Four sizes
  • Lifetime of greater than 5,000 mating cycles
  • Extremely robust and stable housing with non-reflecting surface
  • Contacts for solder and PCB termination
  • High-speed data technology
  • Versatile and individually configurable: Signal, power and data inserts possible within one connector
  • 360° shielding for excellent, trouble-free data transfer
  • Termination to PC-boards,flex-layers or rigid-flex solutions
