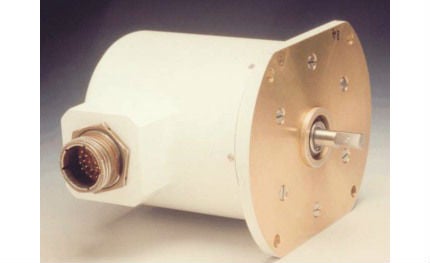

Model GCC40-14GSXP3 Shaft Position Encoder

BEI Precision Systems & Space Company

shaft precision encoder

Model GCC40-14GSXP3 Shaft Position Encoder is a photo-optical device utilising solid-state illumination sources and photodiode detectors. Inherently due to the electro-optical devices used, this unit is radhard as outlined herein. The code format is CW and CCW 14-bit cyclic binary gray code via RS-485(NRX-L) encoded serial data. This unit will deliver aforementioned 14-bit gray code (16,384 counts) over 30 turns of the input shaft.

Main features include:

  • Multi-turn absolute
  • Meets ballistic shock
  • Fully qualified for tanks
  • Large quantity delivered
  • Radiation hardened
  • LED illuminators
  • Single input voltage
