Medical Coaches

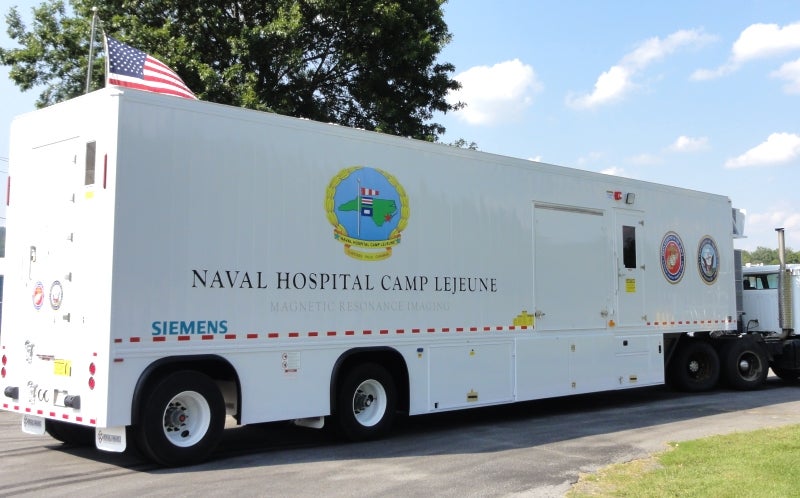

Mobile MRI platform

Basic specifications:

  • Length: 48in (14.63M)
  • Width: 102in (2.6M)
  • Height: 13.5in (4.05M)
  • Trailer Axle Weight: 37,000lbs (15,876kg)
  • Total Weight: 56,000lbs (24,041kg)
  • Power Input: 480V, 3PH, 150A / 200A, 60Hz
  • Generator: 40KW diesel, installed in skirt
  • HVAC: 72,000 BTU
  • Chiller: 100,000-203,000 BTU
  • Utilising modular upgrades

Standard features:

  • Transport-at-field magnetic shielding
  • All-aluminum body and chassis
  • Seamless floor construction
  • Air Suspension on all axles and fifth wheel
  • Rivetless .080in exterior side walls that are 60% thicker than competitor sides
  • Monocoque construction
  • European-style cabinetry with stainless steel
  • Push-button latches
  • Front hydraulic levelling jacks
  • Rear stanchions stored in skirt compartment
  • Exterior compartments rust and leak-free
  • Keyless locking system for compartments
  • 50-Gallon fuel tank, up to 24 hours supply
  • Hydraulic patient lift mounted in protected side compartment with emergency hand pump
  • Our lift meets required federal safety standards
  • FMVSS 403 and 404
  • Body-integrated RFI shielding
  • Easy-sliding patient door, allows partial opening when desired
  • Transit door protects patient door and provides canopy over patient lift
  • 50in shore cable, accessible from both sides
  • Ceiling panels: sound-attenuating-aluminum, easy-to-clean and access
  • Conditioned air distribution 'soft-flow' curtain
  • Contrast injector: installation ready
  • Auto-reset chiller furnished
  • Clean-flow intake air for generator
  • Dual control room, more storage and work surface
  • Three phone lines, and three data lines
  • Dimmable low-density lighting, with separate zone controls
  • Exterior lighting
  • Emergency lighting
  • Exit lights as required
  • Towable by standard tractor
  • Heated exterior compartments as required
  • Condensation-free entrance door
  • Single level floor, full length of trailer
  • Door seals, self-retaining and no fasteners
  • Full-width plate for fifth wheel area
  • Entrance steps and platform, easy storing
  • Smoke alarm
  • Fire extinguishers, 2 ea., 5 lb. A-B-C type
  • Sink with self-contained plumbing system
  • Fire suppression system
  • Hospital-style oxygen / suction system
  • Automatic generator / shoreline transfer system
  • Emergency exit hatch
  • Street-side emergency exit door
  • Custom artwork and graphics
  • Preventative maintenance and service contracts
