HUBER+SUHNER

Reliable, High-Performance Solutions

Microwave Cable Assemblies

HUBER+SUHNER

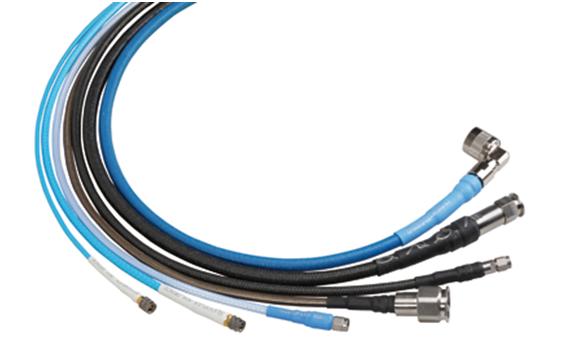

microwave cables

The flexible SUCOFLEX series microwave cable assembly offer superior electrical and mechanical performance for static and dynamic applications.

This series is a high-end product designed to provide optimal performance up to 50 GHz, where stringent electrical requirements, in particular stability and low loss, are important.

Features include:

SUCOFLEX® 100 series

  • Stable electrical characteristics when exposed to bending and temperature
  • Balanced connectors are available
  • Various ruggedisations to protect the assembly

SUCOFLEX® 200 series

  • Impedance 50 Ω
  • Ultra low loss
  • Frequency up to 40 GHz
  • Velocity of propagation 82%
  • MIL-DTL-17 qualified

SUCOFLEX® 300 series

  • Lightweight reduces overall system weight and aids portability
  • Rugged connectors made for easy serviceability
  • Specialised range of connectors
  • Additional armours

SUCOFLEX® 400 series

  • Best insertion loss on the market
  • High phase stability versus temperature
  • Excellent VSWR
  • Various ruggedisations to protect the assembly

Minibend series

The minibend is truly a flexible coaxial 'bend to the end cable' assembly, which is designed for use in in low profile, internal, point-to-point interconnections between RF modules within communication systems.

Features include:

  • 'Bend to the end' solderless technology replaces expensive right angle connectors
  • Low-profile, internal, point-to-point connections between RF modules

High-flex cable assemblies

High-flex cable assemblies have repeatedly endured 3,000,000 flexure cycles with minimal electrical and mechanical degradation.

All cables were designed for use in ultradurable, high-flexure applications.

Features include:

  • Excellent flex properties
  • Low resistance to movement
  • High-shielding effectiveness

Eacon-field mountable microwave assemblies

EACON stands for a simple, flexible and fast way to assemble microwave cables and connectors in the field without compromises to the best performance.

The new field mountable microwave cables and connectors are light and waterproofed, built for frequencies up to 18 GHz.

Features include:

  • Waterproof IP 68
  • Low loss
  • Extremely reliable
  • SMA, N, TNC connector
  • Narrowest cable feed through dimensions



Available Downloads

Download

Defence Reliable, high-performance solutions

Download

Microwave Cable Assemblies For more than 20 years now, HUBER+SUHNER AG has been manufacturing microwave assemblies offering outstanding electrical and mechanical characteristics.
