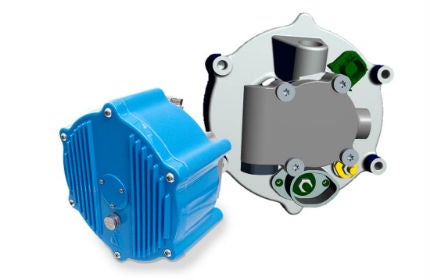

24VDC Electric Steering Pump

ECS

header

ECS's 24VDC electrified steering pump is suitable for commercial vehicles with axles of up to 8t (>150bar). Additional benefits of the pump include increased fuel efficiency by on-demand control and the ability to conduct ZEV driving.

Features and specifications

  • Specification
  • 3.3kW hydraulic power
  • Compact powerpack 190 x 250 x 205 (motor/ electronics / pump)
  • Motor speed 0rpm - 3,500rpm
  • Demand controlled via operating strategy
  • 24VDC input
  • Current peaks approx. 300A (at steering against curb)
  • Control and status info via CAN bus (SAE1939)
